SANIT WC control 2 cables mains supply

WC control system, 2-cable, for accessible construction as per DIN 18040
finishing set with mains supply 230V AC/6V DC
WC flush system for manual remote flush actuation via two arm support rails with electric push button (with wire connection) or with an electric push button provi-ded by the customer, for concealed cisterns with small WC control system, 2-cable, for accessible construction as per DIN 18040access opening (from year of construction 2014) CC-121-S-FO-2V-2C, CC-122-S-UO-2V-2C and CC-150-S-UO-2V-2C

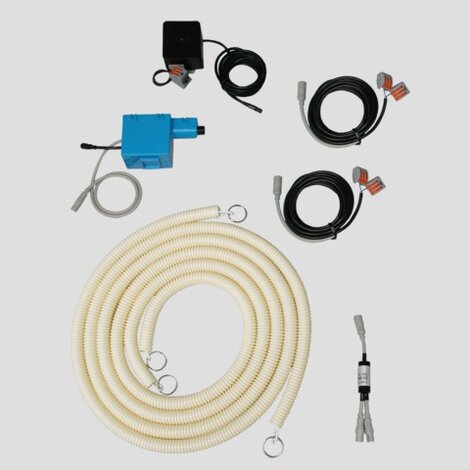

Contents: - low-voltage motor for lifting device and control electronics with bracket - 2 cables 2.1 m long for two floating inputs with 2 terminals - 2 empty pipes 1.7 m long - Y-plug - power supply 230V AC/6V DC with concealed socket and empty pipe 1.7 m long

Parameters:
- automatic intervall flush factory set to 24h
Settings on the low-voltage motot can be adjusted via the service and maintenance remote control DO-25: 0-108 h interval flush after last electronic flush in 12 h increments

- Manual single flush also possible
- flush volumes from 4.5-9 l, depending on the concealed cistern model
- with error-safe plug connection
- power supply for installation outside the concealed cistern
- designed for a maximum distance of 1.7 m between the concealed cistern and the power supply unit

Accessories:
- push plates S 704
- cover plate code no. 16.700.00..0000
- service and maintenance remote control code no. 01.103.00..0000 for the concealed cistern CC-150-S - motor bracket Code No. 05.339.00..0000 - from year of manufacture 2014 on a universal flush valve INEO Code No. 03.982.00..0000 is required
