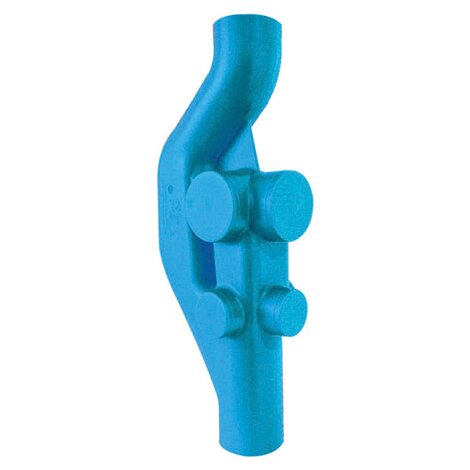

Stack-aerator

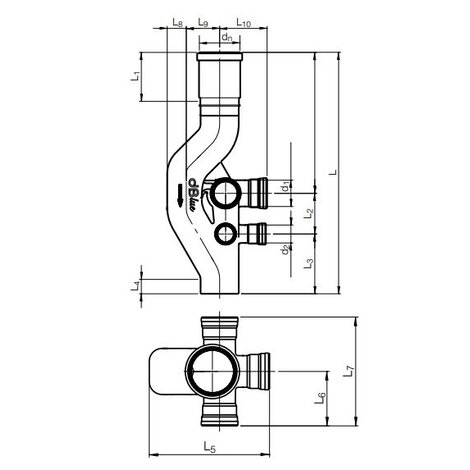

The dBlue stack-aerator is available with 6 possible horizontal branch connections that are closed with a cap. The sockets required for the horizontal connections need to be butt-welded on the stack-aerator. Specify configuration when ordering.
3 x d2 : 110 mm
3 x d3 : 75 mm
Opposite connections are not permitted.
Always use plug-in sockets for the horizontal connections and expansion sockets for the vertical connection on top.
- d1 75 mm - Code VVEN-KIE-075-00D - dBlue plug-in socket (75 mm)
- d1 110 mm - Code VVEN-KIE-110-00D - dBlue plug-in socket (110 mm)
- d1 110 mm - Code VVEN-WLO-110-00D - dBlue expansion socket (110 mm)
- d1 160 mm - Code VVEN-WLO-160-00D - dBlue expansion socket (160 mm)
Inspection openings should be installed according to local regulation. We advise one on every level.
Référence | Nom | Système de verrouillage | product.detail.attribute.fieldQ | product.detail.attribute.code | Catégorie | Sous-catégorie | product.detail.attribute.diameters |
---|---|---|---|---|---|---|---|
VVEN-110-110-75D | Stack-aerator | ?? | 1 | VVEN-110-110-75D | Fittings | Branches | 110, 160 |
VVEN-160-110-75D | Stack-aerator | ?? | 1 | VVEN-160-110-75D | Fittings | Branches | 110, 160 |
