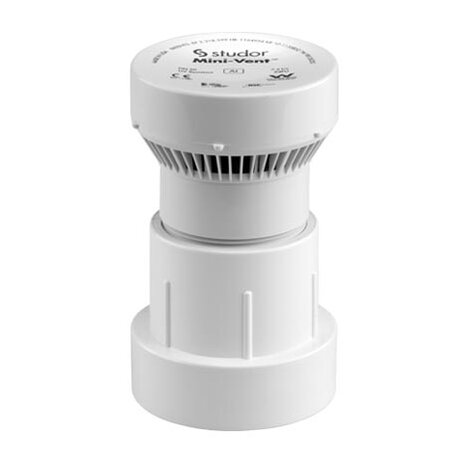

STUDOR Mini-Vent NPT 1,5" with US PVC adaptor

The Mini-Vent is a solution for any single fixture and for a group of fixtures connected to a single branch, i.e. branch ventilation in residential / domestic and commercial applications. It can also be used with other Studor AAVs to complement larger and high-rise building drainage systems and is ideal for all single fixtures: washing machines, toilets, sinks, baths and showers, etc.

This Mini-Vent advanced Air Admittance Valves (AAVs) protects the trap seals in the drainage system by allowing the intake of air, so that the right level of pressure within the drainage system is maintained.

The device is very easy to fit, and will decrease the amount of pipes needed within your drainage system installation.

This patented and unique design can provide drainage solutions for bad odours and sewer smells in existing buildings (by retrofitting), plus it should be used when considering new builds and during the design of drainage systems. Benefits of using the Mini-Vent include cost and time savings.

The Mini-Vent is discreet and will stop all waste water smells. We like to think that because you will save metres of pipe work too, it will have sustainability advantages and environmental benefits.

The Mini-Vent is tested to be resistant to extreme temperatures (-20°C to +60°C) in accordance with the AI rating of EN12380.

Capacity: 7.5 litres/second at -250 Pa (10 Pa = 1mm water gauge)

Temperature range: -20°C to +60°C
Operating pressure: -70 Pa (-0,010 PSI)
Max. pressure rating tightness: 10.000 Pa (1 m H2O), at 0 Pa or higher
EN rating 12380: AI

Air flow capacity:
Europe: Branch 7,5 l / s, Stack 7,5 l / s
AU/NZ: Branch 7,5 l / s / 94 FU, Stack 7,5 l / s / 7FU
USA: Branch 1 to 160 DFU, Stack 8 to 24 DFU

Mini-Vent cap & body: ABS
Mini-Vent membrane: Synthetic rubber
US SCH40 adaptor: PVC

Go back

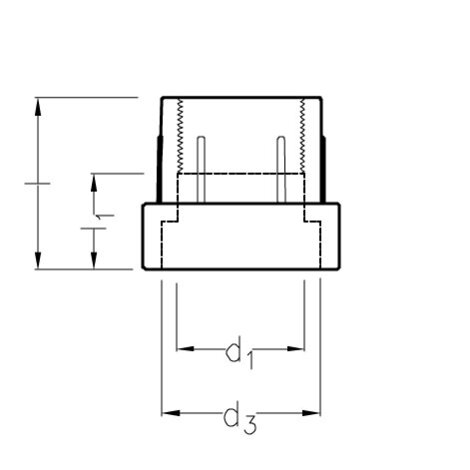

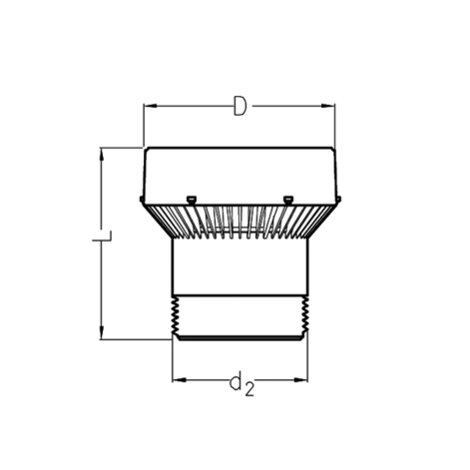

Reference Name DN d1 d3 D L l1 I Main category Subcategory
49010 STUDOR Mini-Vent NPT 1,5" with US PVC adaptor 32-50 51 63 70 67 38 68 Active Drainage Ventilation Air Admittance Valves
